| Printed Electronic (PE) Product : Paste for Touch Screen Panel (印刷电子: 触摸屏用的银浆) | ||||||||
| Silver Conductive Paste Specification (导电银浆规格) | ||||||||
| TEC-PA-051 | TEC-PA-051LV | TEC-PL-010 | TEC-PS-C10 | TEC-PA-060 | TEC-PA-061S | TEC-PA-070 | TEC-PA-080 | |
| (New/Hybrid) (新型号/混合型) | (New) (新型号) | |||||||

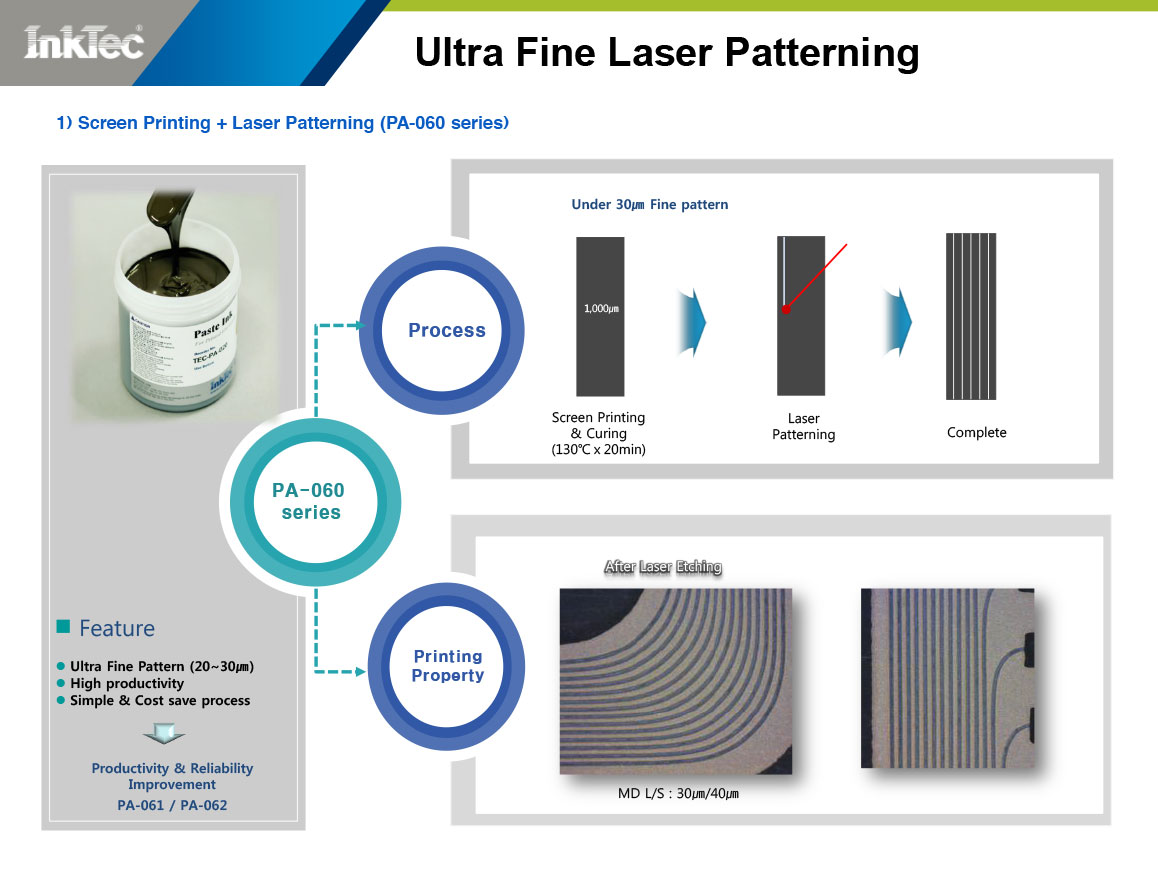

| Process (印刷工序) | Screen 网印 | Screen (网印) | Screen (网印) | Screen (网印) | Screen + Laser (网印+雷雕) | Screen + Laser (网印+雷雕) | Screen (网印) | Screen + Laser (网印+雷雕) |
| (Low Curing Temp.)( 低温烘干) | Car Display (汽车仪表) | (Hybrid ink) (混合型油墨) | Ultra Fine pattern (超幼银线) |
|||||
| Target Line Width目标线宽 | ≧65um | ≧70um | ≧80um | ≧100um | ≧30um | ≧30~20um | ≧70um | ≦20um |
| Appearance (外观) | Dark Grey (深灰色) | Dark Grey (深灰色) | Dark Grey (深灰色) | Grey (灰色) | Dark Grey (深灰色) | Light Grey (浅灰色) | – | – |
| Viscosity (粘度) (@20rpm) BROOKFIELD DV-II+PRO(Spindle: 15 at 25℃) 粘度计BROOKFIELD DV-II + PRO (拌搅棒: 15, 在25℃时) | 185,000±14,000cps | 155,000±15,000cps | 130,000±15,000cps | 50,000±8,000cps | 77,000±12,000cps | 60,000±10,000cps | 140,000~150,000cps | – |
| Curing Temperature (干固温度) (Convection Oven 对流式热风烘箱) | 130℃ X 20min. | 130℃ X 20min. | 100℃ X 30min. | 130℃ X 20min. | 130℃ X 20min. | 130℃ X 20min. | 130℃ X 20min. | – |
| Volume Resistivity on ITO (体积电阻在ITO上) | Max. 6.5 x 10-5Ωcm | Max. 6.5 x 10-5Ωcm | Max. 6.5 x 10-5Ωcm | Max. 6.5 x 10-5Ωcm | Max. 6.5 x 10-5Ωcm | Max. 6.5 x 10-5Ωcm | Max. 3 x 10-4Ωcm | – |
| Surface Roughness ( 表面粗糙度) | 1-1.2um | 1-1.2um | 1-1.2um | 0.6-0.7um | 0.5-0.6um | – | ≦0.5~0.6um | |
| Thickness (厚度) | 6~8um | 6~8um | 6~8um | – | 5~6um | 4~5um | – | 3~4um |
| Adhesion on ITO (附着力在ITO上) (ASTM D 3359) | 5~4B | 5~4B | 5~4B | 5~4B | 5~4B | 5~4B | 5~4B | 5B |
| Recommend ITO (推荐的ITO薄膜): Nitto(V150L-OFMD5,V150L-OFME), Oike(KH300N03-125-U3L), LG Chem (N1501-A25) | ||||||||
